Linear Measuring Systems Company offers the
following:
**NEW** Jenix digital readout system
The complete system
includes display, scales and all mounting hardware:
|
No.
|
KINDS OF 800 SERIES
|
Where to use
|
KEYBOARD
|
|
1
|
DSC-801M
|
MILL, OTHER
|
X0/X
|
|
2
|

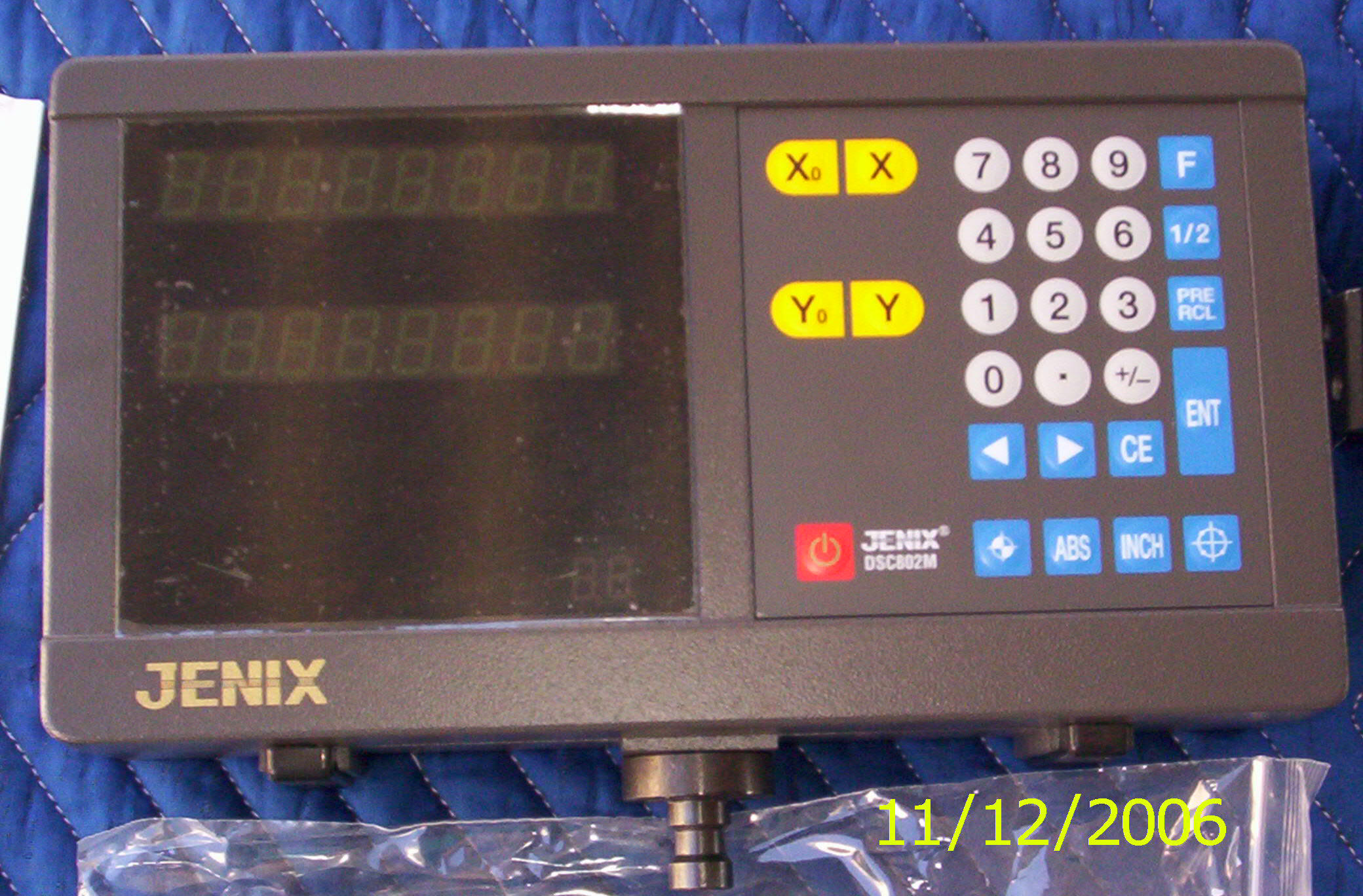

DSC-802M
|
X0/X, Y0/Y
|
|
3
|
DSC-803M
|
X0/X, Y0/Y, Z0/Z
|
|
4
|
DSC-804M
|
X0/X, Y0/Y, Z0/Z, Q0/Q
|
|
5
|
DSC-801G
|
GRINDER
|
G0/G
|
|
6
|
DSC-802G
|
Y0/Y, Z0/Z
|
|
7
|
DSC-802L
|
LATHE
|
X0/X, Z0/Z
|
|
8
|
DSC-803L
|
X0/X, Z10/Z1, Z20/Z2
|
|
|
|
The specifications for the display is below:
| - TECHNICAL SPECIFICATION - |
| ■ MODEL DSC 800
SERIES & 703EDM |
| Specification/Model |
DSC- 801 / 802 / 803 / 804 |
DSC-703EDM |
| Display |
Green FND having 7 digits |
| Unit (mm/inch) |
Direct conversion |
| Display resolution |
0.01 / 0.005mm / 0.001mm |
| ABS |
100 points |
10 points
|
| Memory backup |
10 years without power |
| Oprating temperature |
-5℃ ~ 45℃ (23℉ ~ 113℉) |
| Voltage consumption |
15W |
| Dimensions & weight |
279(W)×70(D)×151(H), 1.6kg |
279x110x151, 2.2kg
|
| Power source |
AC 80 ~ 264V, 50/60Hz (free
voltage) |
| External housing |
Aluminum die-casting |
| Keyboard |
Membrane type |
| Function lamp |
Red light |
| (EDM) Steps |
|
4 Steps
|
|
|
|
| Function |
800 Series
|
703EDM
|
| Bolt hole circle |
* |
* |
| Selecting axis function in Bolt hole circle |
* |
* |
| Preset & Preset recall |
* |
* |
| Changing resolution |
* |
* |
| Initializing |
* |
* |
| Memory back up at power failure |
* |
* |
| Display zero |
* |
* |
| Rate compensation |
* |
* |
| Testing FND |
* |
* |
| 1/2 Partition |
* |
* |
| ABS / INCR |
100 points
|
10 points
|
| mm / inch |
* |
* |
| Changing direction of axis |
* |
* |
| RAD / DIA for lathe |
* |
|
| Summing up 2 axes for lathe |
* |
|
| Display " Error" |
* |
|
| Wired remote controller |
▶ |
|
| for EDM (Electro Discharging Machine) |
|
4Steps
|
|
| *:PROVIDED ▶:OPTION |
-
| |
DIGITAL READOUT
 |
● Bolt hole circle
Since up to 10,000 holes can be made along the circumference of
the basic circle, it increases efficiency of works and
production in working for molds and processing parts.
● ABS/INC
Incremental machining (zero approaching) can be used anytime by
presetting the coordinate of each axis without error. In
absolute positioning, JENIX counter can be saved 100 coordinates
to memory.
● Counting direction conversion
Moving direction can be converted, (+) or (-) value can be
selectable.
● Preset & preset recall
It makes your working more convenient with easy operation to
preset data and recall it.
● Summing up 2 axes' values
This can be used to sum up two feed values, the summed value
displays at on Y-axis displaying panel.
● Memory back-up
By the battery built inside a counter, pre-saved data are
preserved even when the power is off. |
Click here for scale
and display mounting pictures and drawings:
Jenix pictures and
drawings
|
| |
A glass scale is installed in the linear scale
guaranteeing high accuracy.
There are four types of linear scale: Standard, Slim, Ultra-slim
and long scale type.
|
|
Style
|
Type
|
Range
|
* Pleas click an image to see a large picture |
|
Standard
|
JSM
|
50~3000 (mm)
|
|
|
Slim
|
JSS
|
50~1000 (mm)
|
|
|
Ultra Slim
|
JSN
|
50~450 (mm)
|
|
|
For long scale
|
JSH
|
1000mm ~
|
 |
|
| |
|
Resolution
|
mm
|
inch
|
Example
|
|
1L
|
1/1000 mm
|
0.00004 inch
|
JSS1L-500 , JSN1L-250
|
|
5L
|
5/1000mm
|
0.0002 inch
|
JSS5L-750, JSM5L-3000
|
|
10L
|
1/100 mm
|
0.0004 inch
|
JSH10L-5000, JSH10L-8000
|
|
| |
|
* Ordering Details
|
Linear scale
|
Style
|
Resolution
|
Measuring length
|
Overall length
|
|
JSN1L- 250 (10")
|
Ultra slim
|
1/1000mm (= 0.00004inch)
|
250mm (10")
|
400mm (16")
|
|
JSS5L- 800 (32")
|
Slim
|
5/1000mm (=0.0002inch)
|
800mm (32")
|
1000mm (40")
|
|
JSM5L-1300 (52")
|
Standard
|
5/1000mm (=0.0002inch)
|
1300mm (52")
|
1500mm (60")
|
|
JSH10L-5000
|
Heavy
|
1/100mm (=0.0004inch)
|
5000mm
|
5200mm
|
|
|
* Please download drawing for each model.
| PDF - Adobe Acrobat File |
|
|
|
|
| JPG - Image File |
|
|
|
|
| DWG - AutoCAD File |
|
|
|
|
|
| *
TECHNICAL SPECIFICATION |
| |
JSS, JSM, JSN- 1L
(1/1000mm) |
JSS,JSM,JSN- 5L
(5/1000mm) |
JSS, JSM -
1LF
(Feed back or NC scale) |
Remark |
| Output
signal |
 |
 |
 |
※ Additional extension cables are
optional. |
|
Measurement |
20㎛ (0.0008 inch) Glass
scale |
| Accuracy |
2+2L/1000mm |
3+3L/1000mm |
2+2L/1000mm |
|
Resolution |
1㎛(0.001mm) |
5㎛(0.005mm) |
1㎛(0.001mm) |
Output
pulse
|
250
pulse/mm |
50
pulse/mm |
250
pulse/mm |
Max.Travering Speed
|
36m /
min (120ft/min) |
60m /
min (200ft/min) |
36m /
min (120ft/min) |
| Reference
signal |
25mm (0.98 inch) |
Grating
period
|
0.02mm (0.0008 inch) |
| Moving
force |
≤ 5 N |
Max.
vibration
|
30 ㎨ (3G) |
| Storage
temp. |
-20℃ ~ 70℃(-4℉~158℉) |
Working
ambient temp.
|
-5℃ ~ 45℃(23℉~113℉) |
Supply
voltage
|
+5V, ±5%, 150mA |
|
Protective design grade |
(1) Equivalent to Ip53,
(2)Improvement of the design grade |
|
|
| * SCALE SPECIFICATION
|
|
MODEL
JSM,JSS,JSN1L(5L)
mm(inch) |
Effective
measuring length
mm(inch) |
Max. movable
Length (mm(inch) |
Overall Length |
| JSS, JSM |
JSN |
JSS, JSM |
JSN |
| 50 (2) |
50 (2) |
90 (3.54) |
70 (2.76) |
250 (10) |
200 (08) |
| 100 (4) |
100 (4) |
140 (5.51) |
120 (4.72) |
300 (12) |
250 (10) |
|
150 (6)
|
150 (6)
|
190 (7.48) |
170 (6.69) |
350 (14) |
300 (12) |
|
200 (8)
|
200 (8)
|
240 (9.44) |
220 (8.66) |
400 (16) |
350 (14) |
|
250 (10)
|
250 (10)
|
290 (11.41) |
270 (10.63) |
450 (18) |
400 (16) |
|
300 (12)
|
300 (12)
|
340 (13.38) |
320 (12.60) |
500 (20) |
450 (18) |
|
350 (14)
|
350 (14)
|
390 (15.35) |
370 (14.57) |
550 (22) |
500 (20) |
|
400 (16)
|
400 (16)
|
440 (17.32) |
420 (16.54) |
600 (24) |
550 (22) |
|
450 (18)
|
450 (18)
|
490 (19.29) |
470 (15.80) |
650 (26) |
600 (24) |
|
500 (20)
|
500 (20)
|
540 (21.25) |
|
700 (28) |
|
|
600 (24)
|
600 (24)
|
640 (25.19) |
|
800 (32) |
|
|
700 (28)
|
700 (28)
|
740 (29.13) |
|
900 (36) |
|
|
750 (30)
|
750 (30)
|
790 (31.10) |
|
950 (38) |
|
|
800 (32)
|
800 (32)
|
840 (33.07) |
|
1000 (40) |
|
|
900 (36)
|
900 (36)
|
940 (37.00) |
|
1100 (44) |
|
|
1000 (40)
|
1000 (40)
|
1040 (40.94) |
|
1200 (48) |
|
|
1100 (44)
|
1100 (44)
|
1140 (44.88) |
|
1300 (52) |
|
|
1200 (48)
|
1200 (48)
|
1240 (48.81) |
|
1400 (56) |
|
|
1300 (52)
|
1300 (52)
|
1340 (52.75) |
|
1500 (60) |
|
|
1400 (56)
|
1400 (56)
|
1440 (56.69) |
|
1600 (64) |
|
|
1500 (60)
|
1500 (60)
|
1540 (60.62) |
|
1700 (28) |
|
|
1600 (64)
|
1600 (64)
|
1640 (64.56) |
|
1800 (72) |
|
|
1700 (68)
|
1700 (68)
|
1740 (68.50) |
|
1900 (76) |
|
|
1800 (72)
|
1800 (72)
|
1840 (72.44) |
|
2000 (80) |
|
|
1900 (76)
|
1900 (76)
|
1940 (76.37) |
|
2100 (84) |
|
|
2000 (80)
|
2000 (80)
|
2040 (80.31) |
|
2200 (88) |
|
|
2100 (84)
|
2100 (84)
|
2140 (84.25) |
|
2300 (88) |
|
|
2200 (88)
|
2200 (88)
|
2240 (88.18) |
|
2400 (96) |
|
|
2300 (92)
|
2300 (92)
|
2340 (92.12) |
|
2500 (98) |
|
|
2400 (96)
|
2400 (96)
|
2440 (96.06) |
|
2600 (104) |
|
|
2500 (98)
|
2500 (98)
|
2540 (100.00) |
|
2700 (106) |
|
|
2600 (104)
|
2600 (104)
|
2640 (109.93) |
|
2800 (112) |
|
|
2700 (106)
|
2700 (106)
|
2740 (107.87) |
|
2900 (114) |
|
|
2800 (110)
|
2800 (110)
|
2840 (111.81) |
|
3000 (118) |
|
|
2900 (114)
|
2900 (114)
|
2940 (115.74) |
|
3100 (122) |
|
|
3000 (118)
|
3000 (118)
|
3040 (119.68) |
|
3200 (126) |
|
* Bold typed characters are
all JSM (Standard) style
|
|
 |

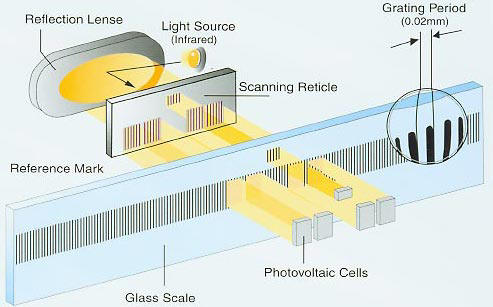

| By the
relative moving of MAIN scale and INDEX scale,
light signal is changed to Electric signal.
After that, it is made to high divisional
signals via the Electric circuit. |
|
|
|
The package also includes the following:
Installation:
-
The 12 x 30 system can be retrofitted on a Bridgeport Series I (9x42)
machine or the import copies. The brackets could be modified to work on other
machines.
-
The 12 x 30 x
system can be retrofitted on a Bridgeport Series I (9x42) machine or the
import copies. The brackets could be modified to work on other machines.
-
The 16 x 36 system can be retrofitted on a Lagun (10x54) machine
or the import copies. The brackets could be modified to work on other
machines.
(The 54" table normally takes a 36" scale)
-
The 12 x 24 system can be retrofitted on a Bridgeport Series I (9x38)
machine or the import copies. The brackets could be modified to work on other
machines.
-
The 10 x 20 system can be retrofitted on a RF Drill/mill
machines or the other copies. The brackets could be modified to work on other
machines.
-
The 10 x 40 system can be retrofitted on a lathe
machine. The brackets could be modified to work on other
machines.
WARRANTY:
System comes with a 6 year Mfg. warranty.
The system is is
imported, sold and serviced by our company, Linear Measuring Systems Company
here in California.
To
purchase on line right now, click on the links below to be taken to our new
on-line store
For
Milling machines
12" x 30"
This system will fit a 9 x 42 Bridgeport
Series I mill and copy mills.
Click here to order: Web Price:
$575.00 *
12" x 36"
This system will fit a 9 x 48 Bridgeport
Series I mill and copy mills.
Click here to order:
Web Price: $575.00 *
12" x 30" x 6"
This system will fit a 9 x 42 Bridgeport
Series I mill and copy mills.
Click here to order:
Web Price: $675.00*
16" x 36"
This system will fit 10 x 54 Lagun mill and
copy mills.
Click here to order:
Web Price: $575.00*
12" x 24"
This system will fit a 9 x 38 Bridgeport
small mill and copy mills.
Click here to order:
Web Price: $575.00*
10" x 20"
This system will fit a Drill/Mill machines and
other small mills.
Click here to order:
Web Price: $575.00*
For lathes
6" x 40"
8" x 40"
10" x 40"
This system will fit a small lathes.
Click here to order:
Web Price: $675.00*
Regular Price: $1295.00 to $1595.00
Call us
with your order at 877-376-4373 or 714-321-6592
Other
sizes are available from 2" to 120", please call for a quote.
