**NEW** Birmingham digital mill readout systems
Made in China
Serviced and parts inventory maintained in California.
The following systems sizes are available:
Package Number: Uniq 10 x 20 milling system 10" x 20" Travel
Fits RF-31 Drill/Mill table top machine: $540.00 each
Package Number: Uniq 9 x 42 milling system 12" x 32" Travel
Fits 9 x 42 milling machines: $540.00 each
Package Number: Uniq 9 x 49 milling system 12" x 36" Travel
Fits 9 x 48/49 milling machines: $540.00 each
Package Number: Uniq 10 x 54 milling system 16" x 36" Travel
Fits 10 x 54 milling machines: $540.00
Flat rate UPS Ground shipping to be added to the above price
No other sizes are available. My suppler only stocks the above sizes.
Call us at 877-376-4373 or 714-222-6110 to place a order.
The complete system - includes:

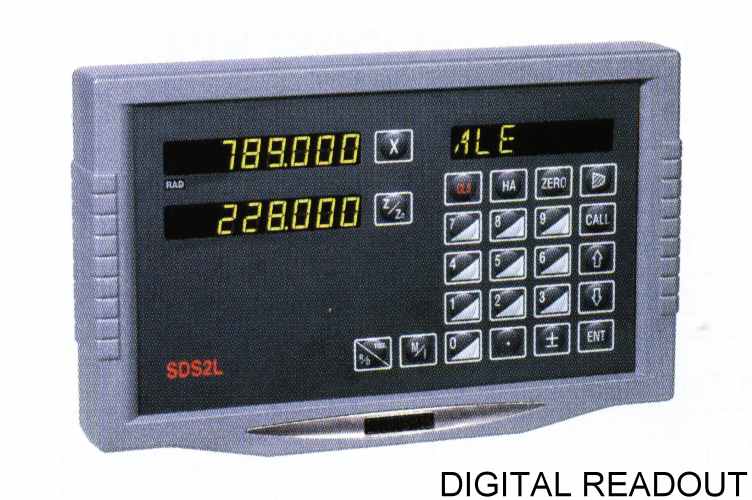

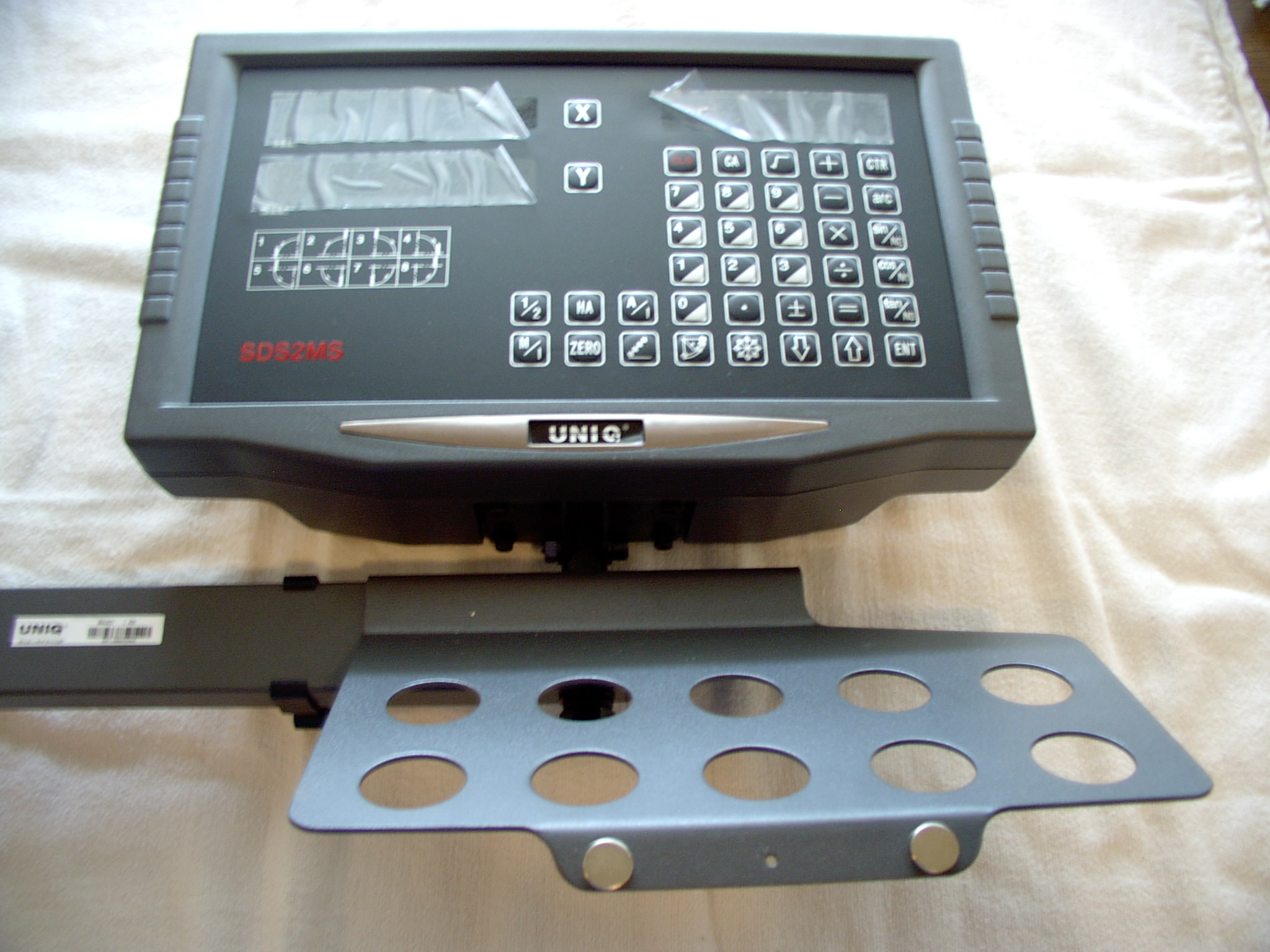

Model DSD2-2MS two axis display
Key pad: Membrane Type
Function Display: Green Light

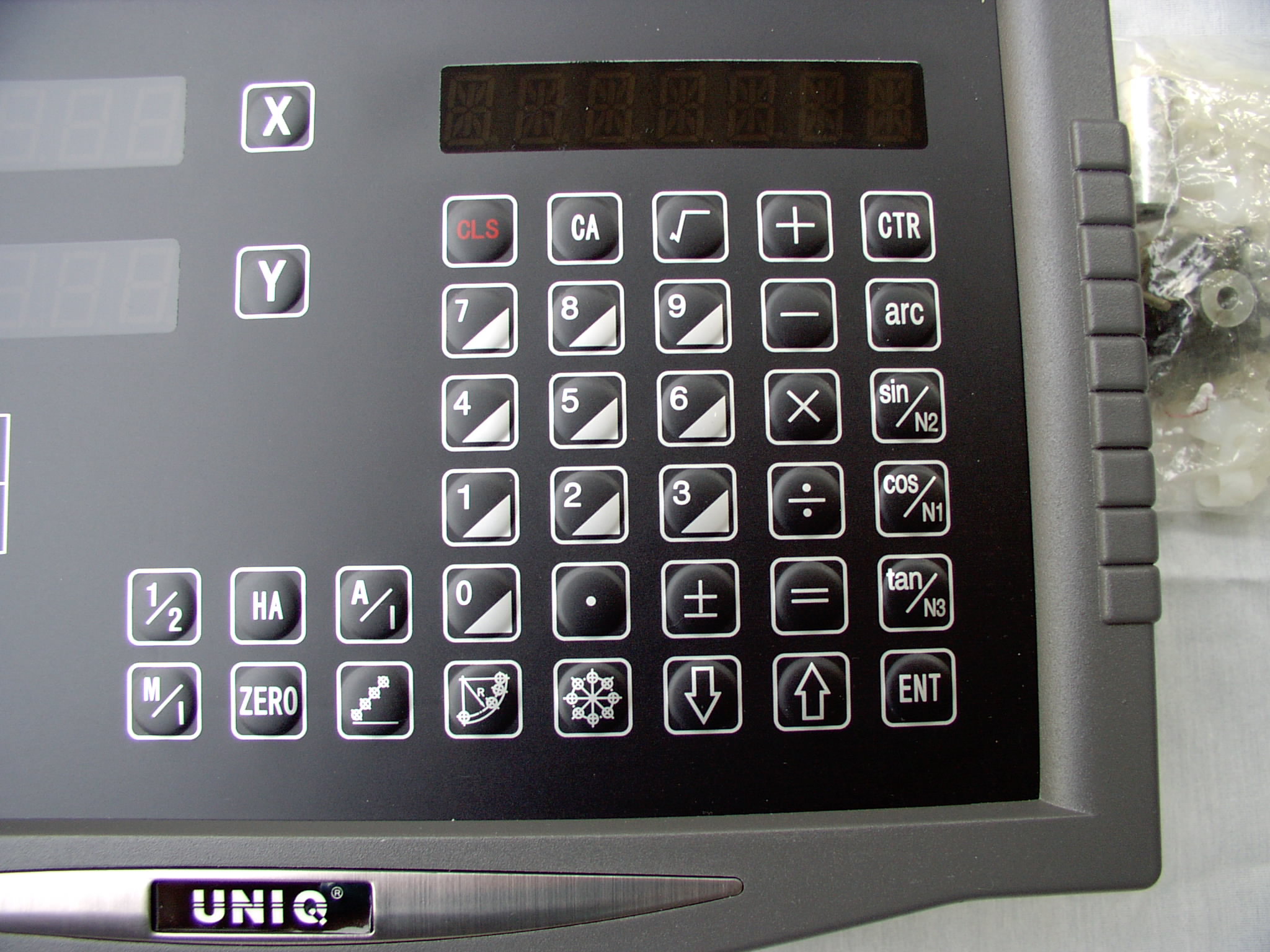

Here are the features that are available in the display:
Keys for Axis selection Entry keys for digits
+ , - , X , '/. , = keys for calculation function
"crt" - calculation function key
"arc" key for inverting trigonometric functions
square root key enter key
clear key 1/2 function key
"inch/mm" conversion key
absolute zero key zero key
Bolt hole circle key
drilling hole in a oblique line key
Angular surface processing key
9 Tool compensation key
absolute/incremental key

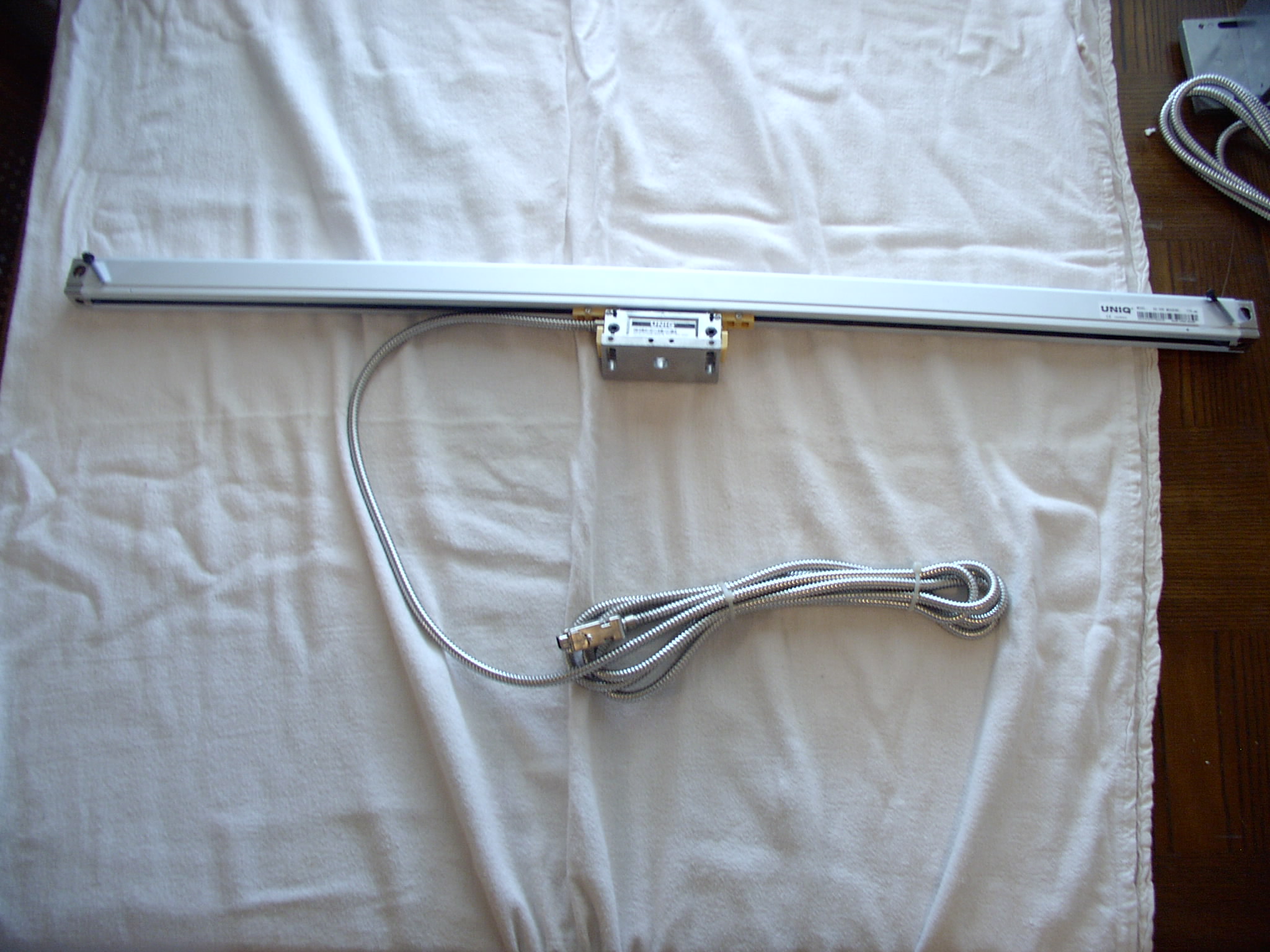

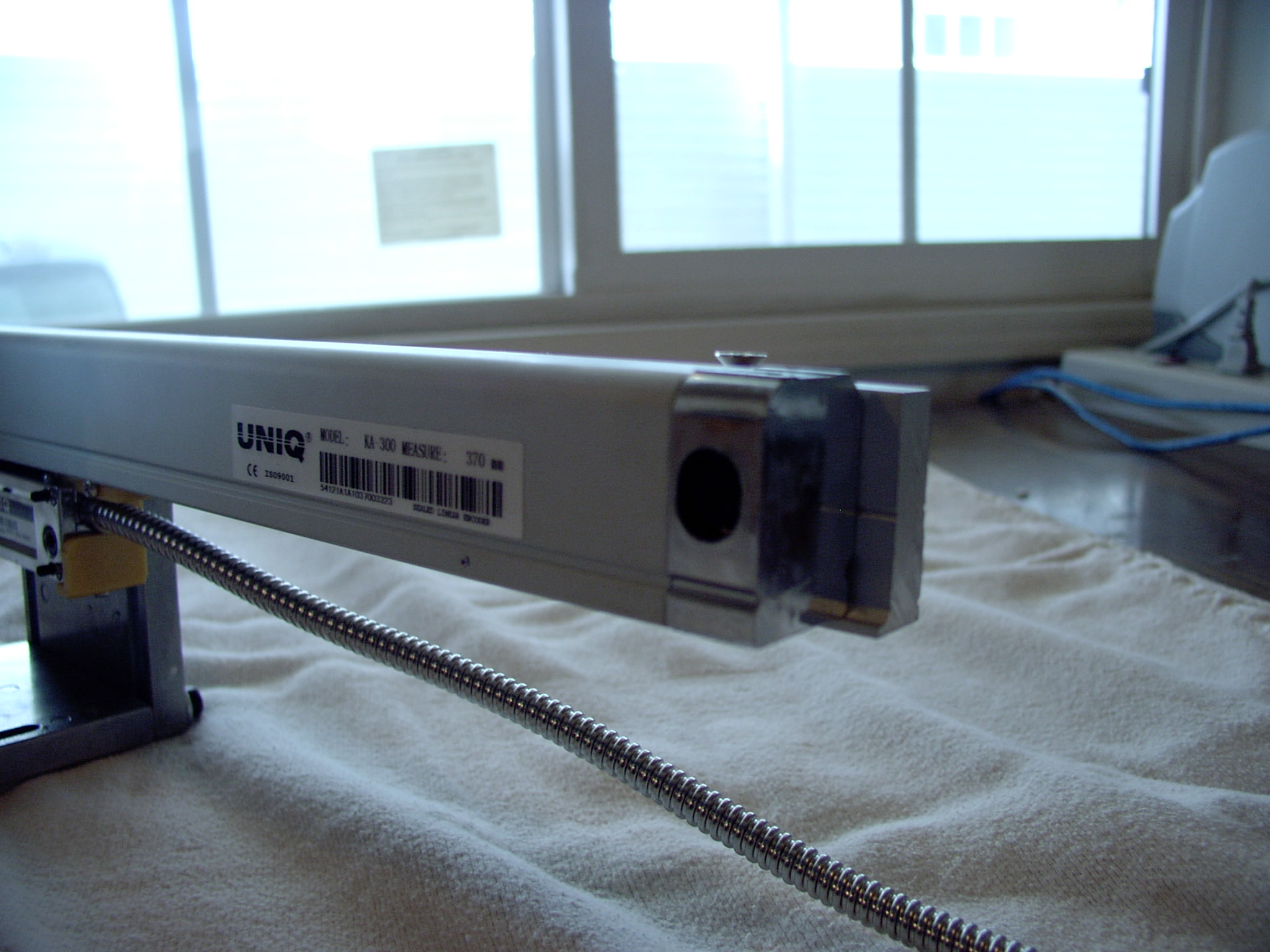

Model KA-300 scale
The scales are high precision glass scales.
They are not some flimsy rod that has not been checked for accuracy with a laser!
We show a actual picture of our scale not a drawing like our competition.
You can see what you are getting from us.
The specifications of the scales are below:
Resolution: 5um (0.005mm).0002 inch Output Waveform: SQUARE WAVE
Standard cable length: 3 Meter (about 9 feet)

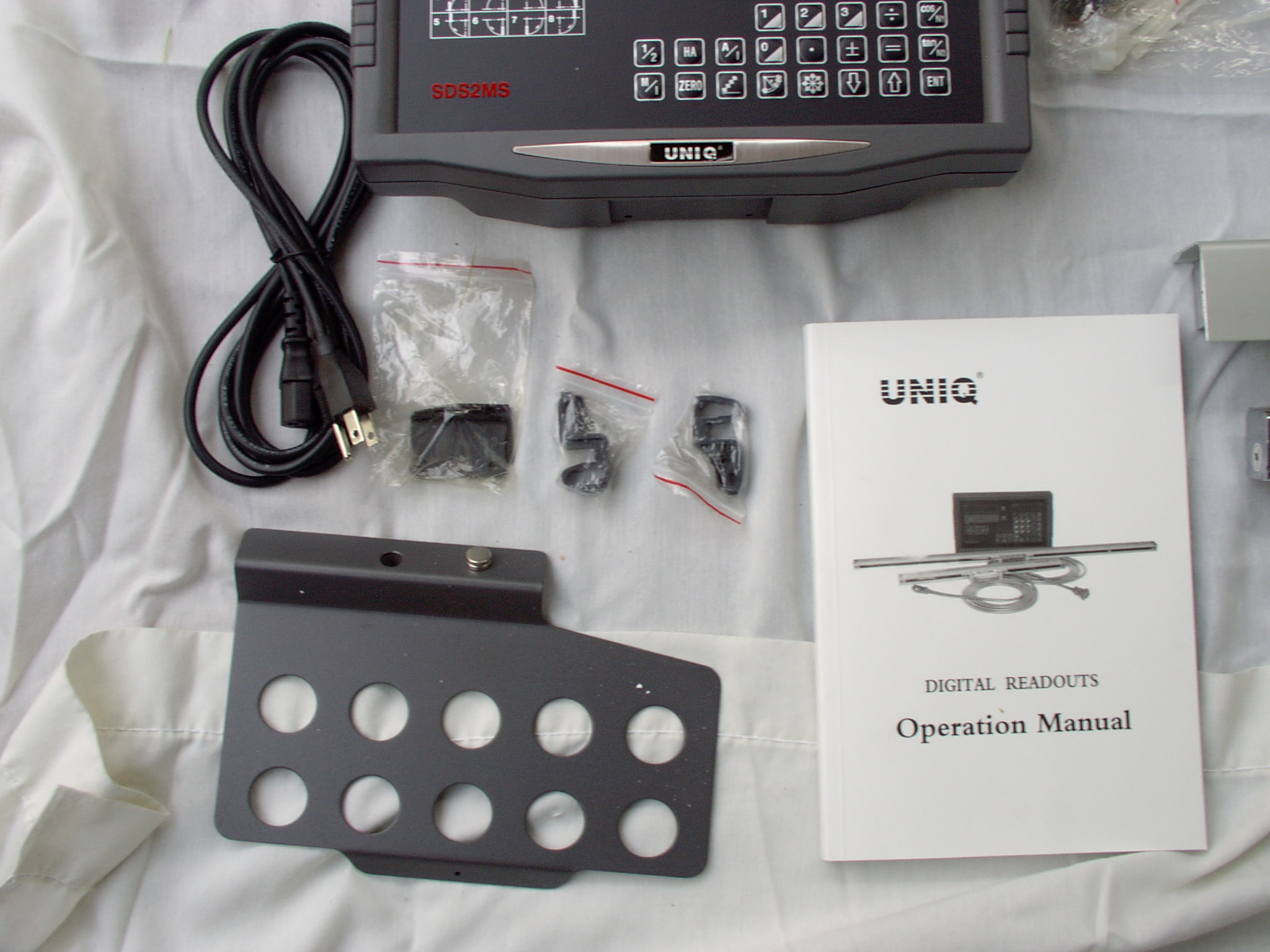

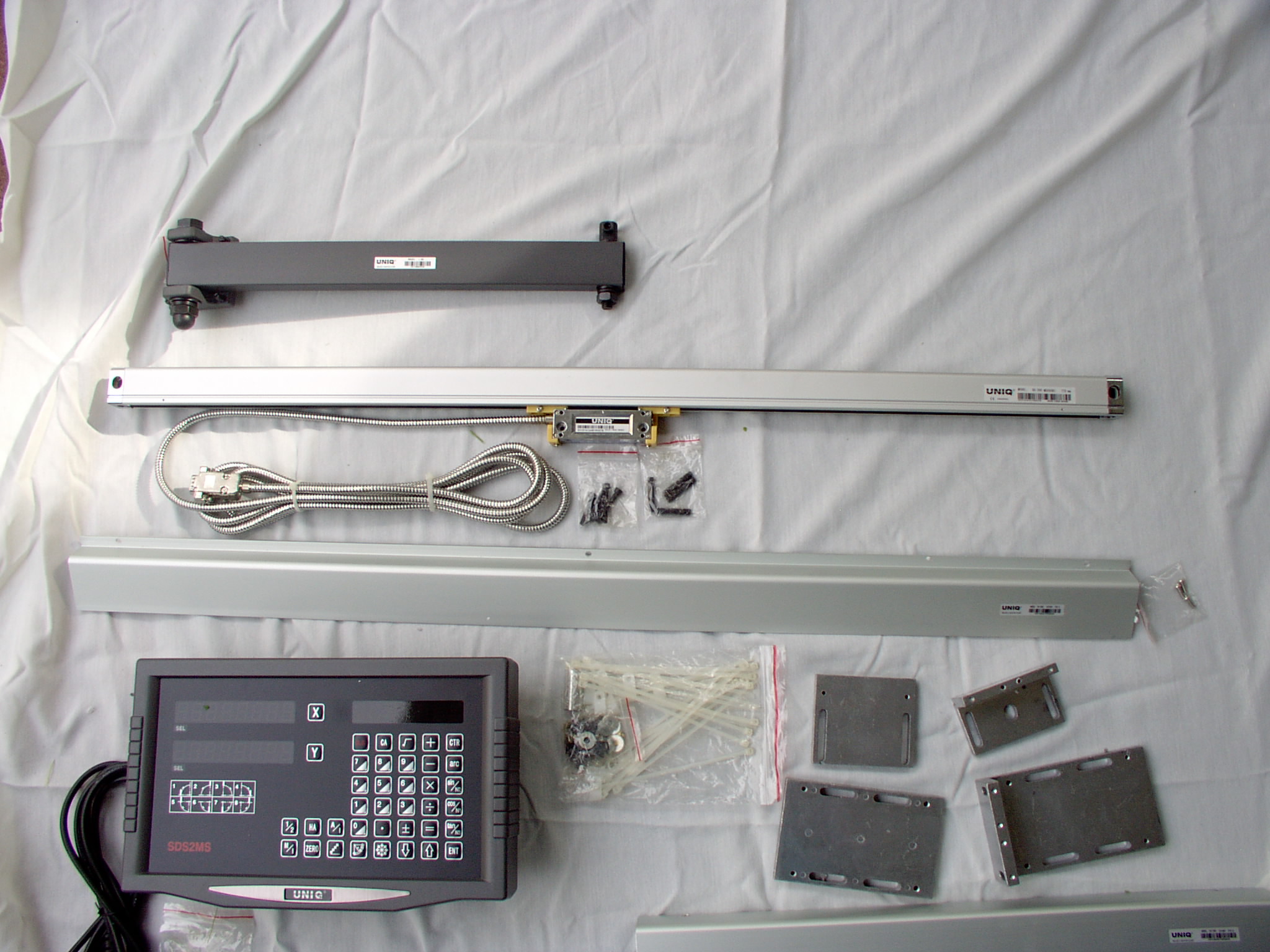

The package also includes the following:
-
manual
-

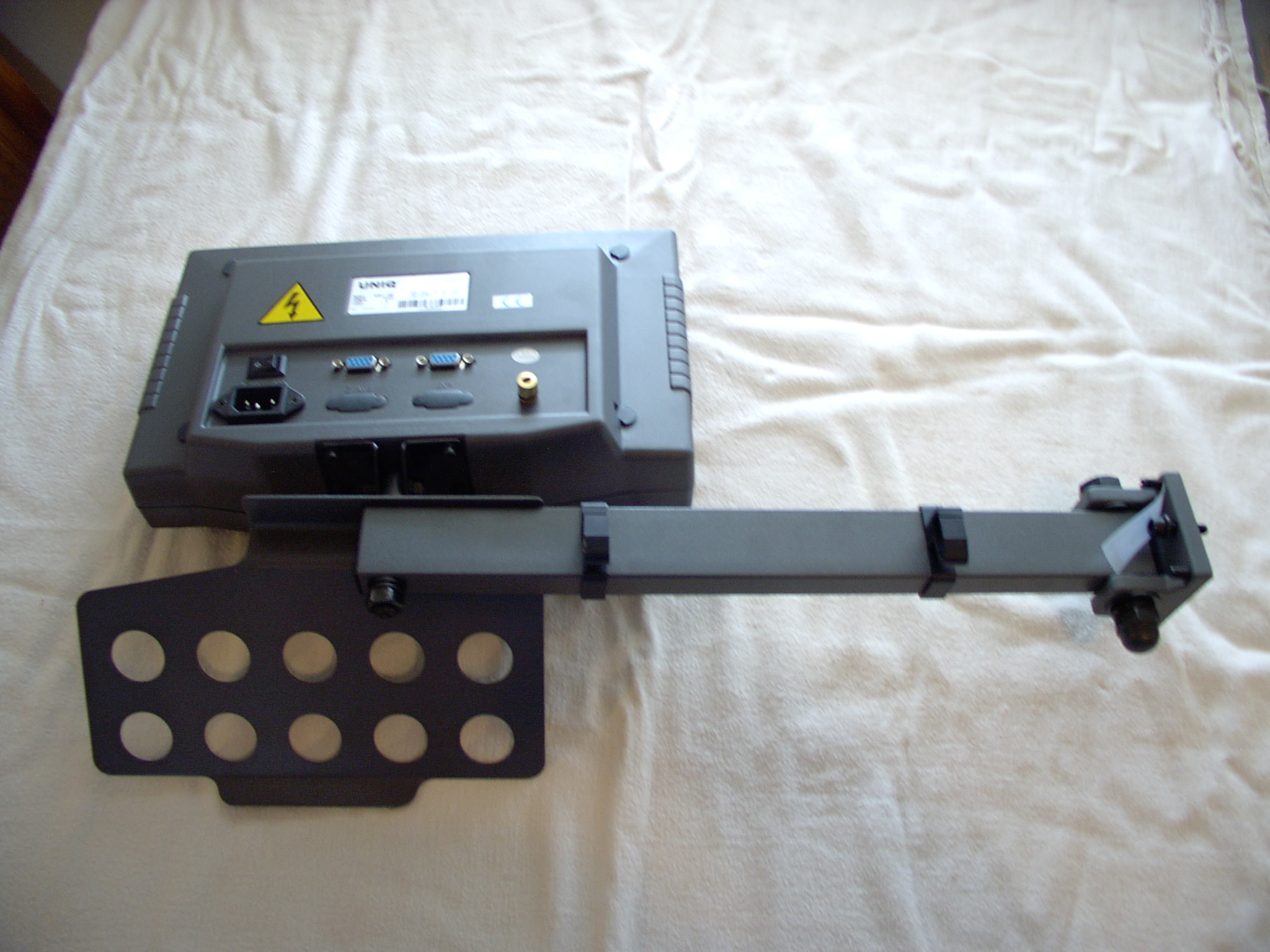

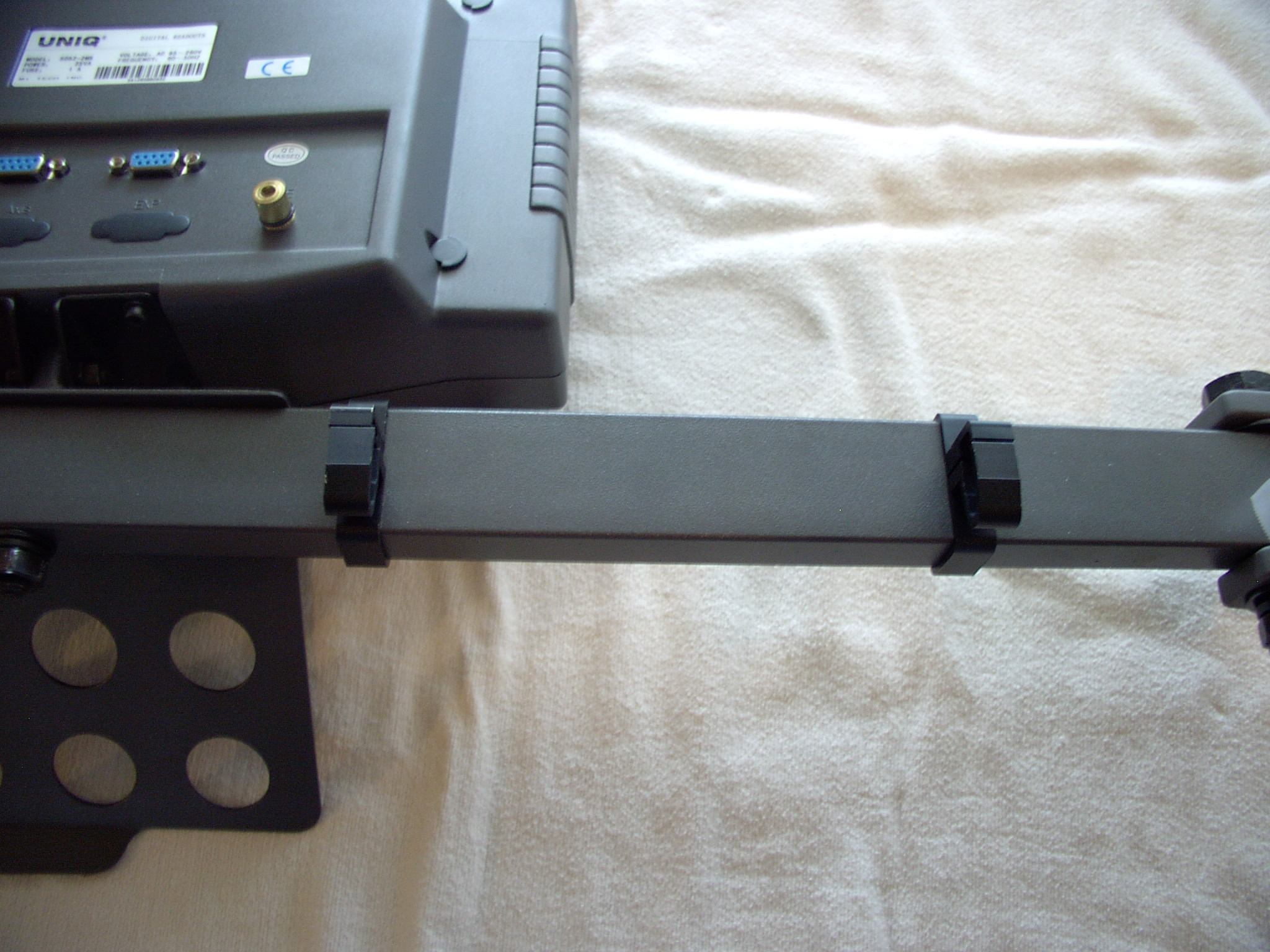

display cover & mounting arm
-

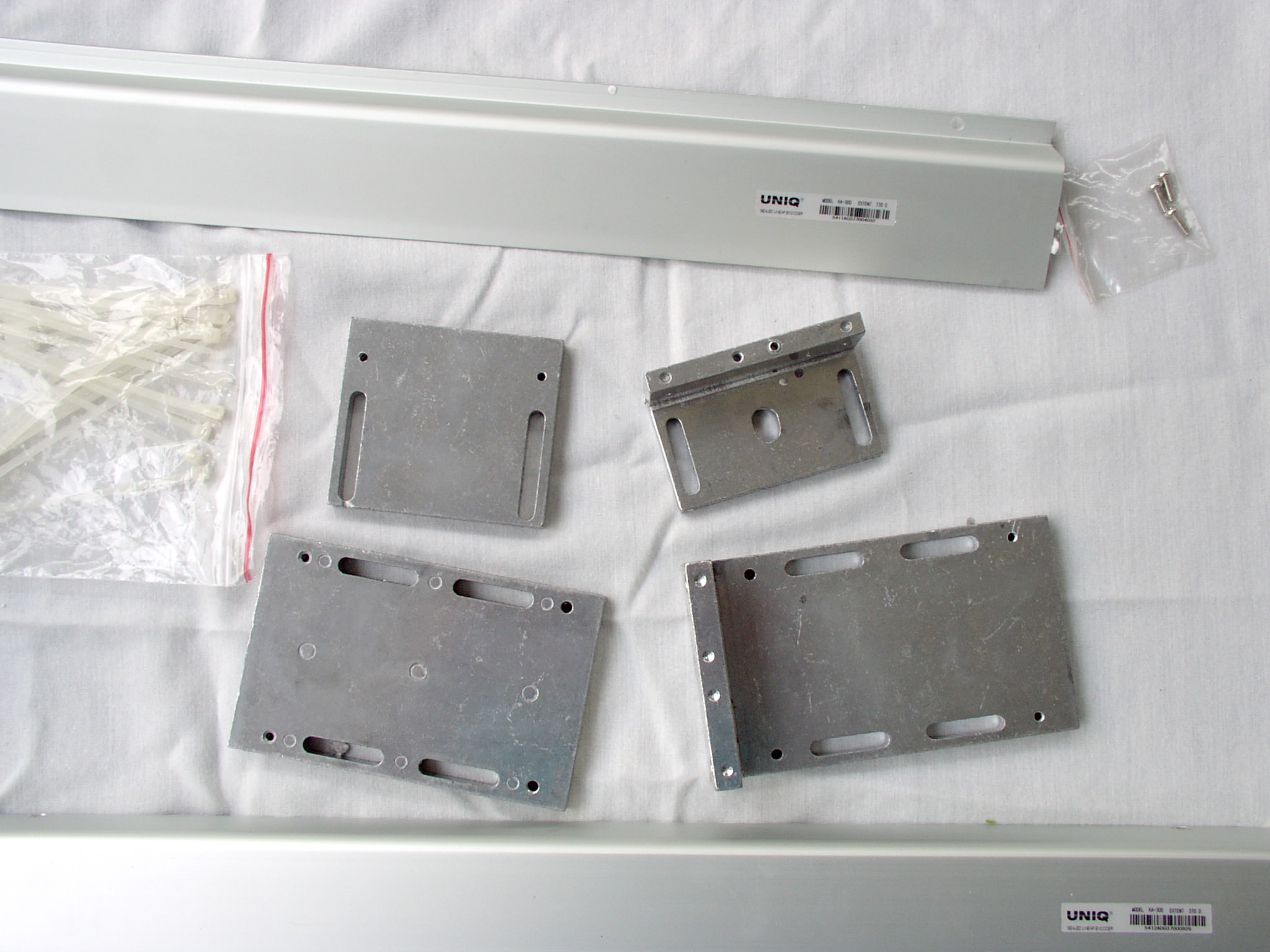

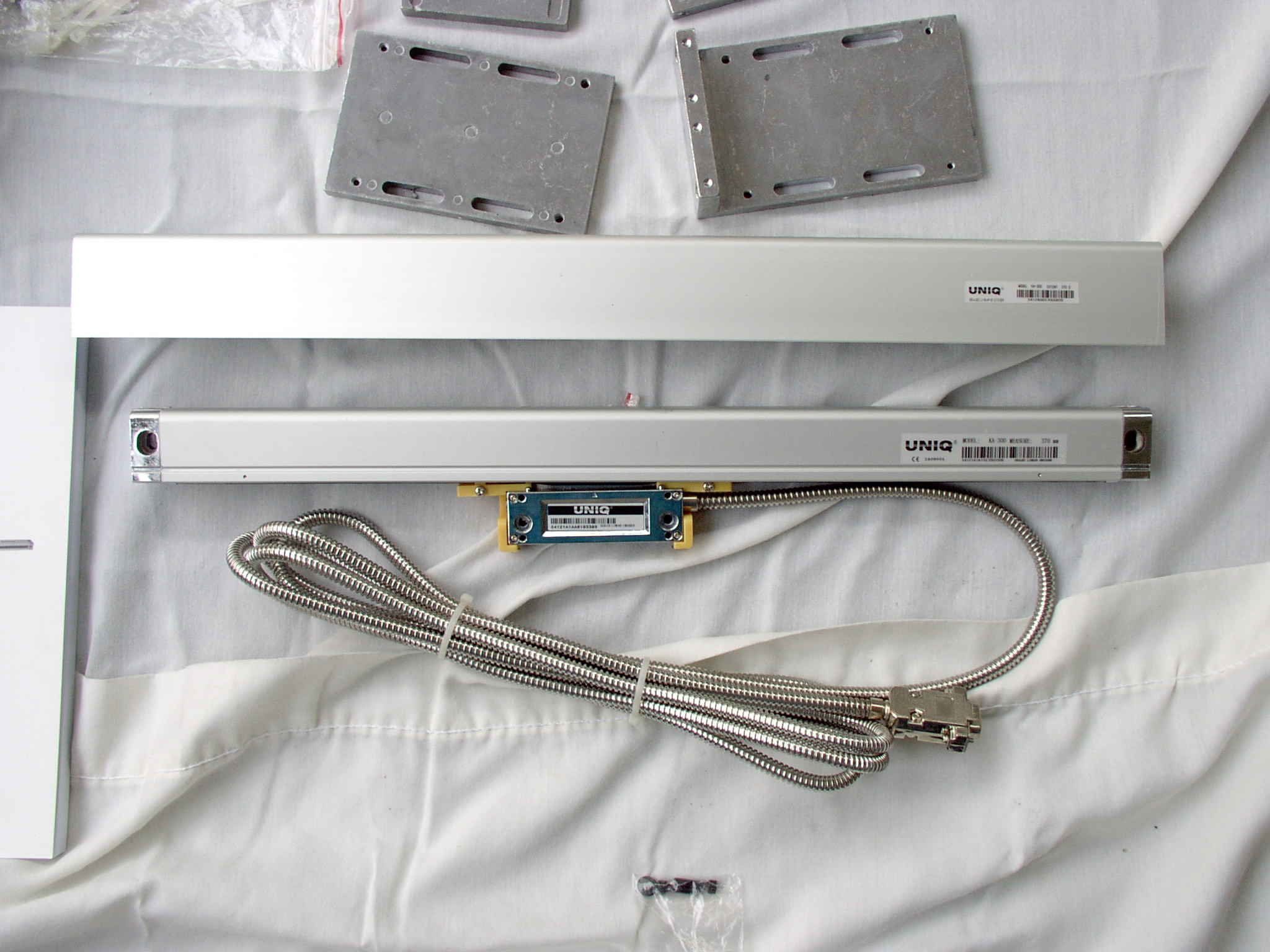

and mounting hardware for X & Y scales that include covers.
WARRANTY:

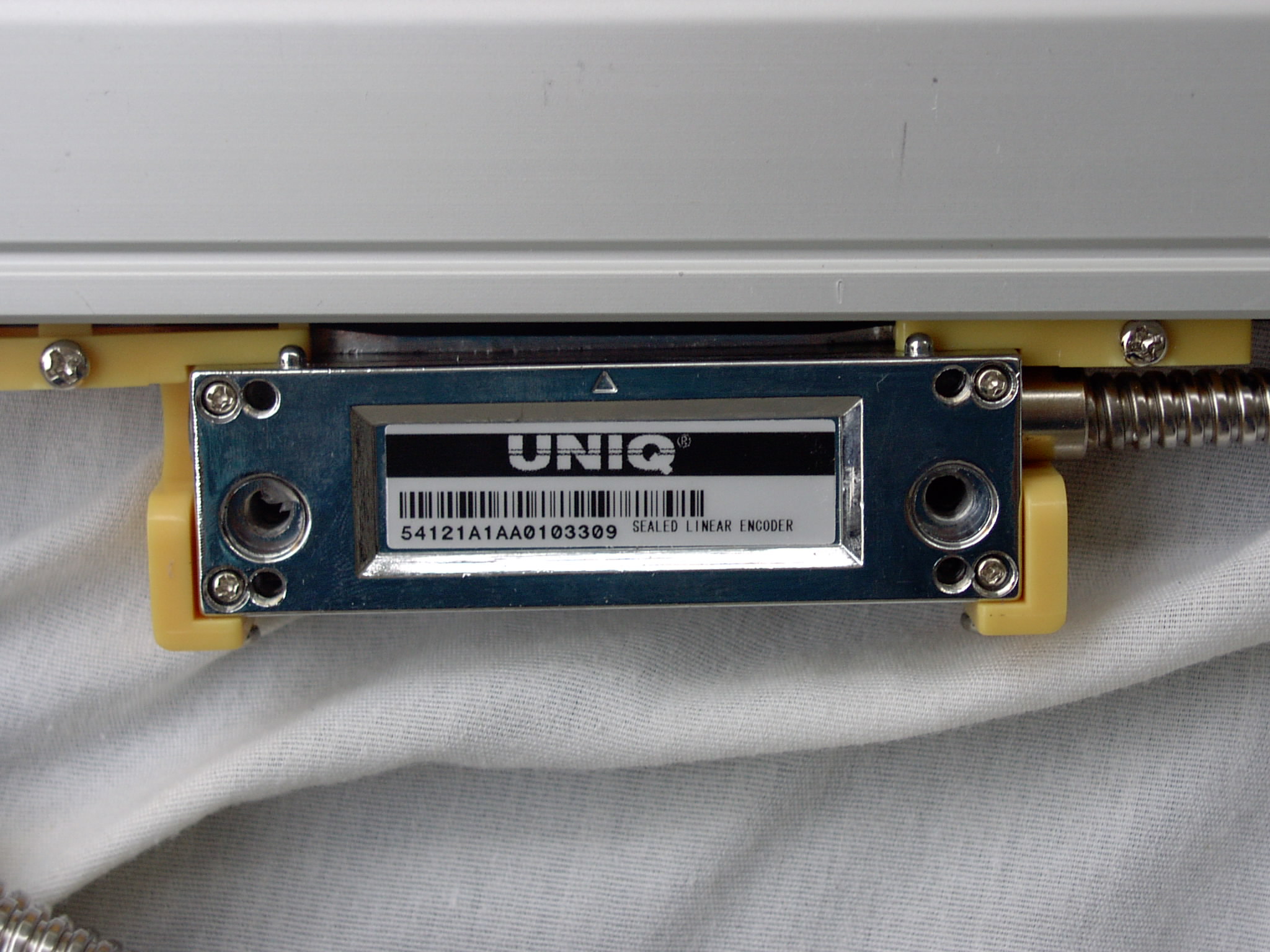

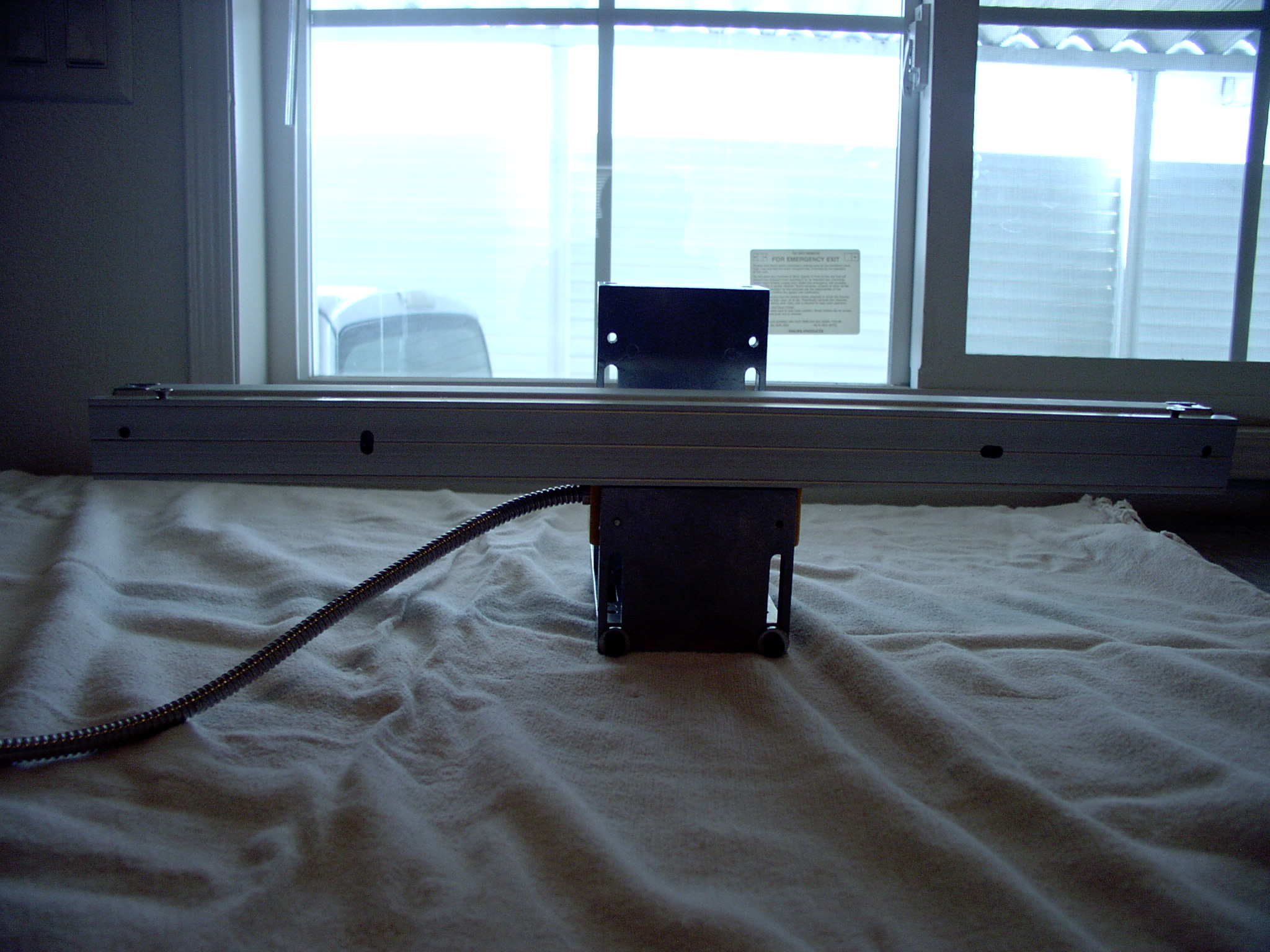

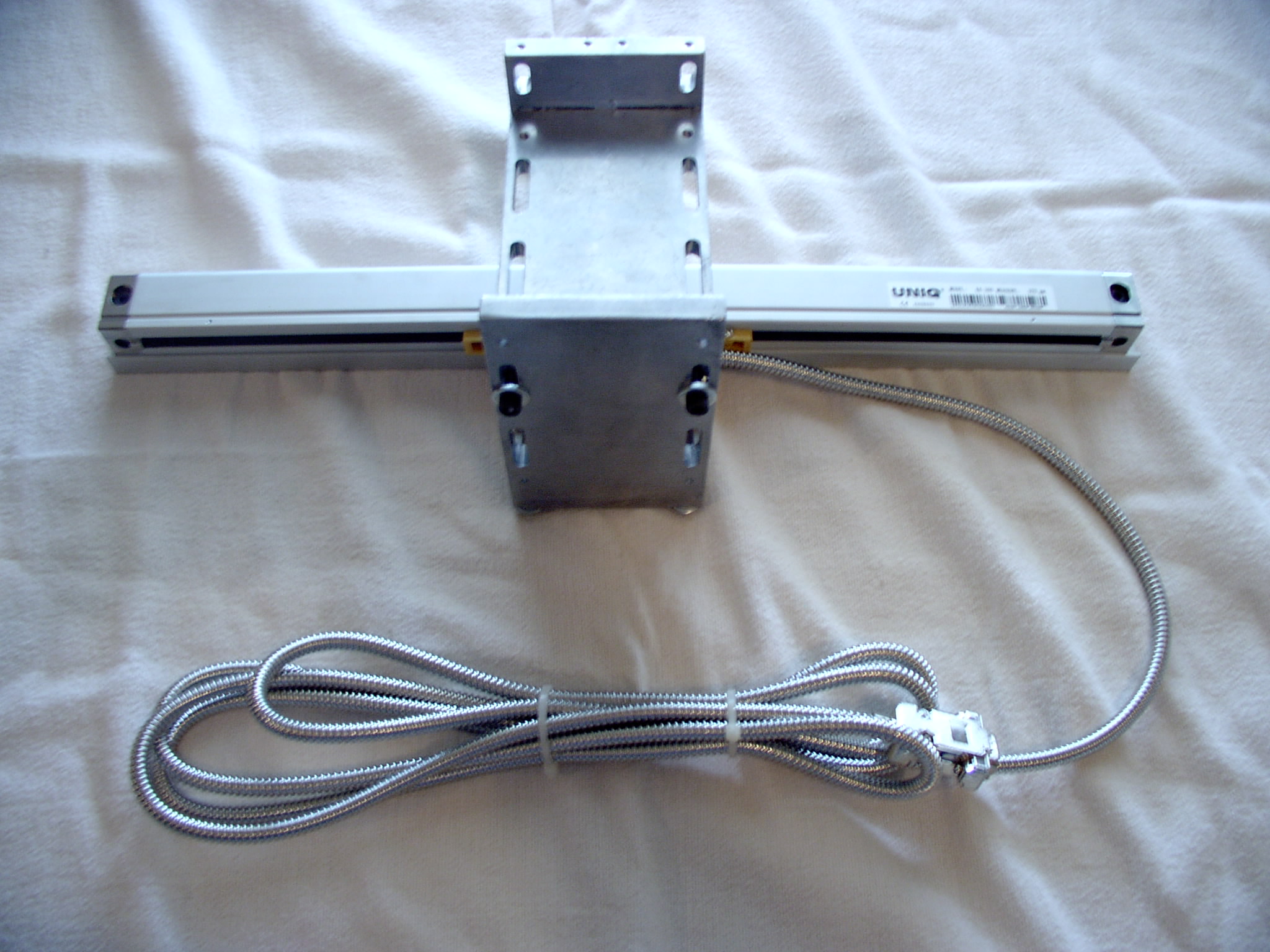

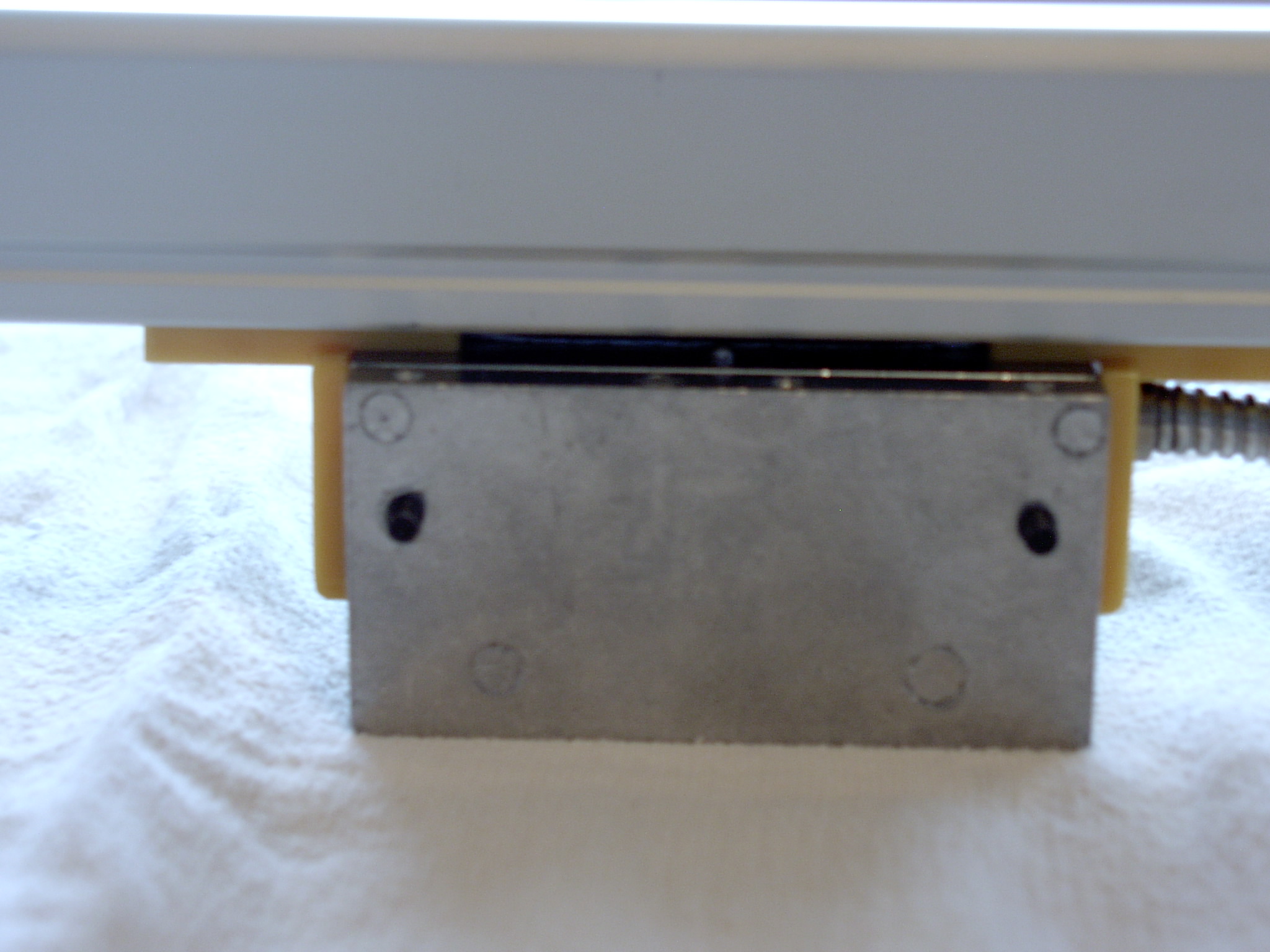

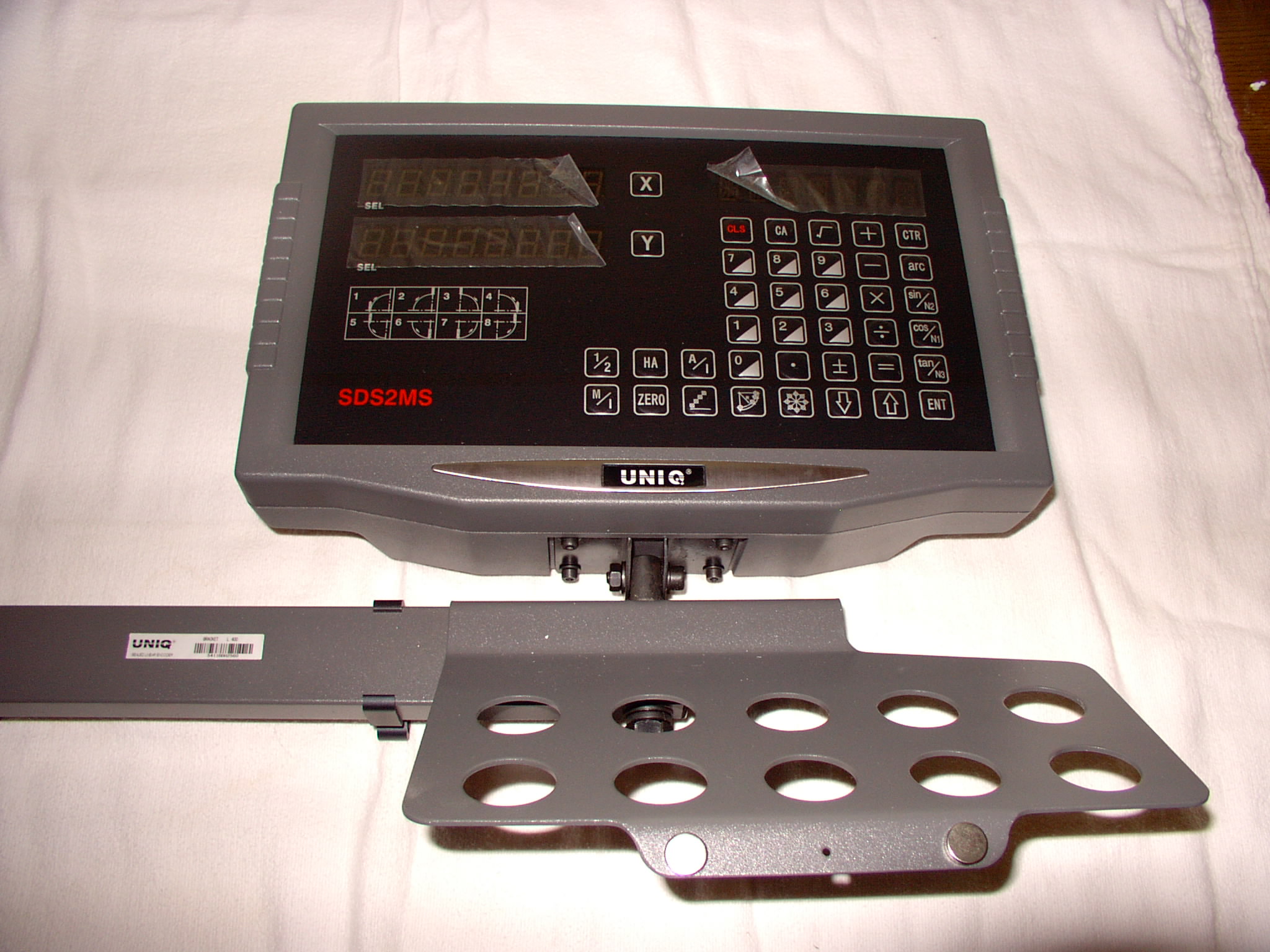

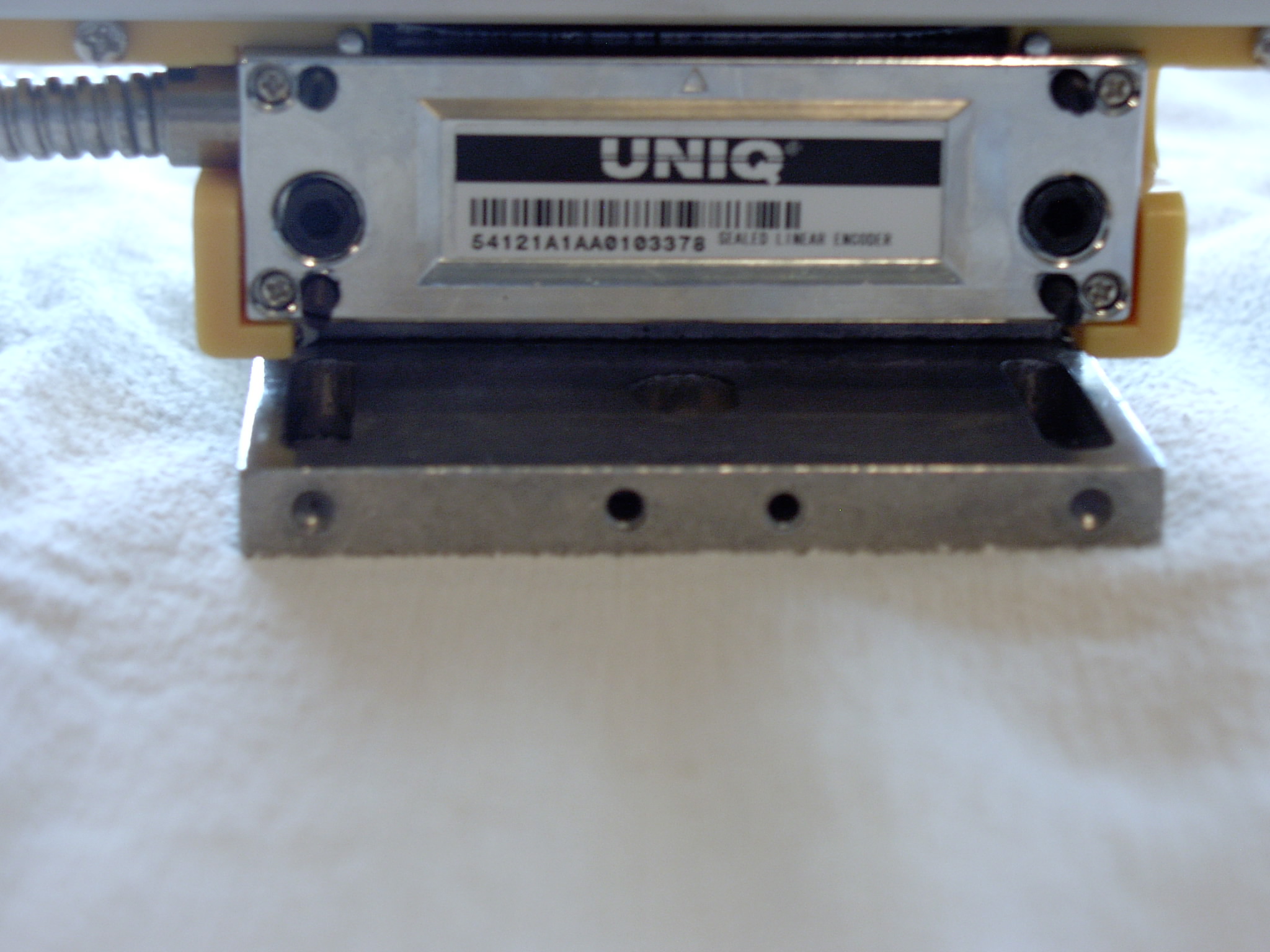

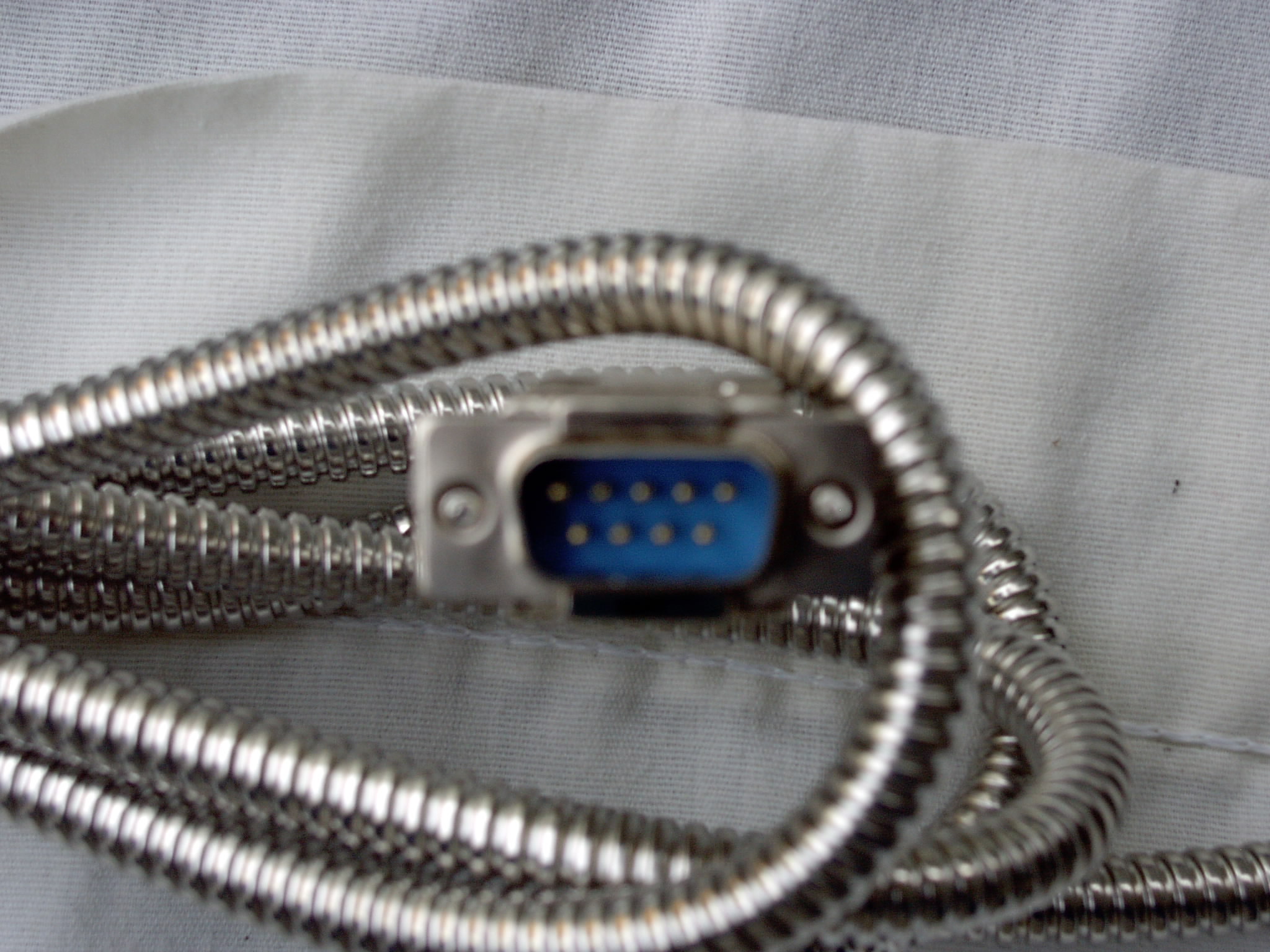

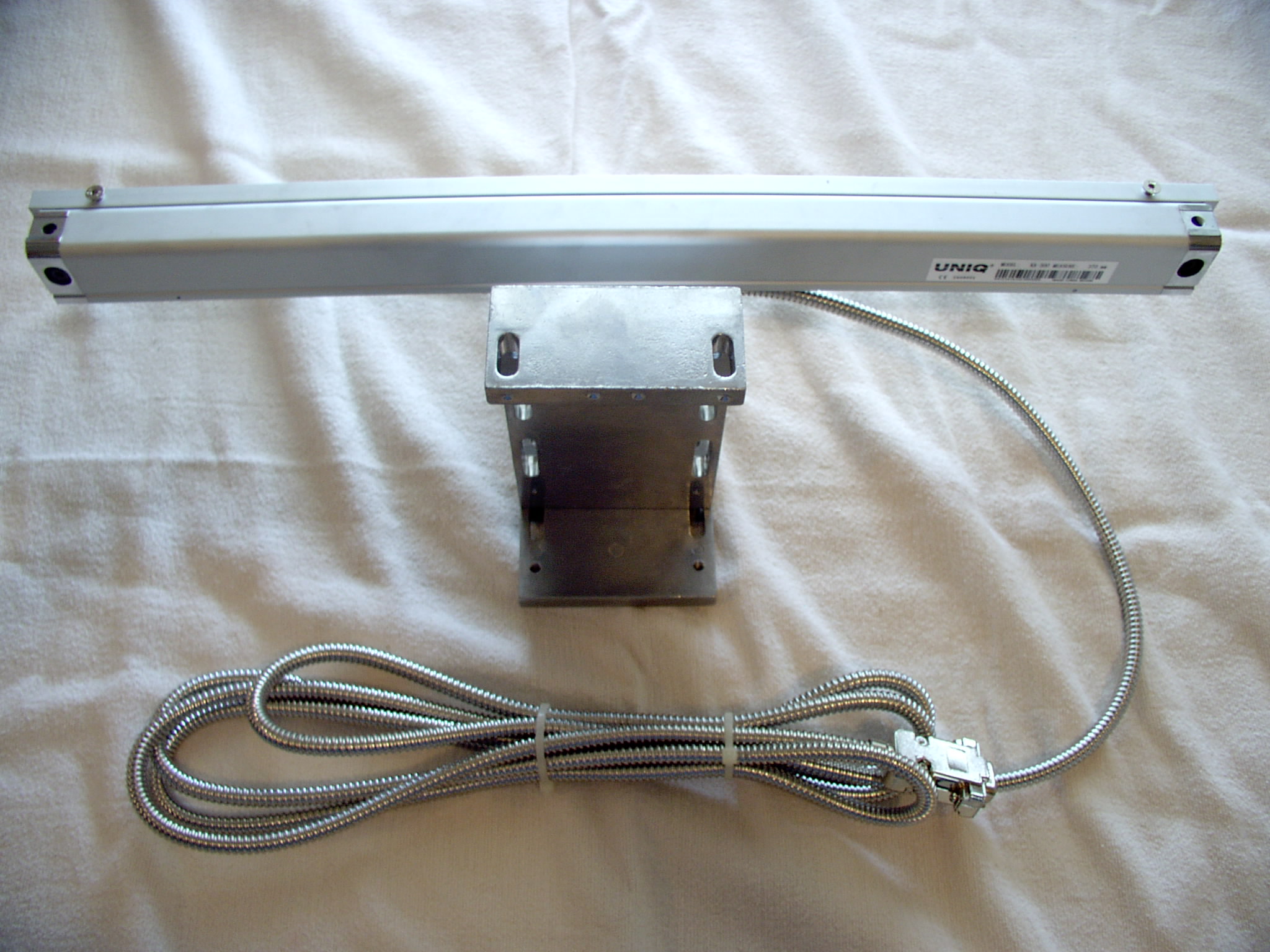

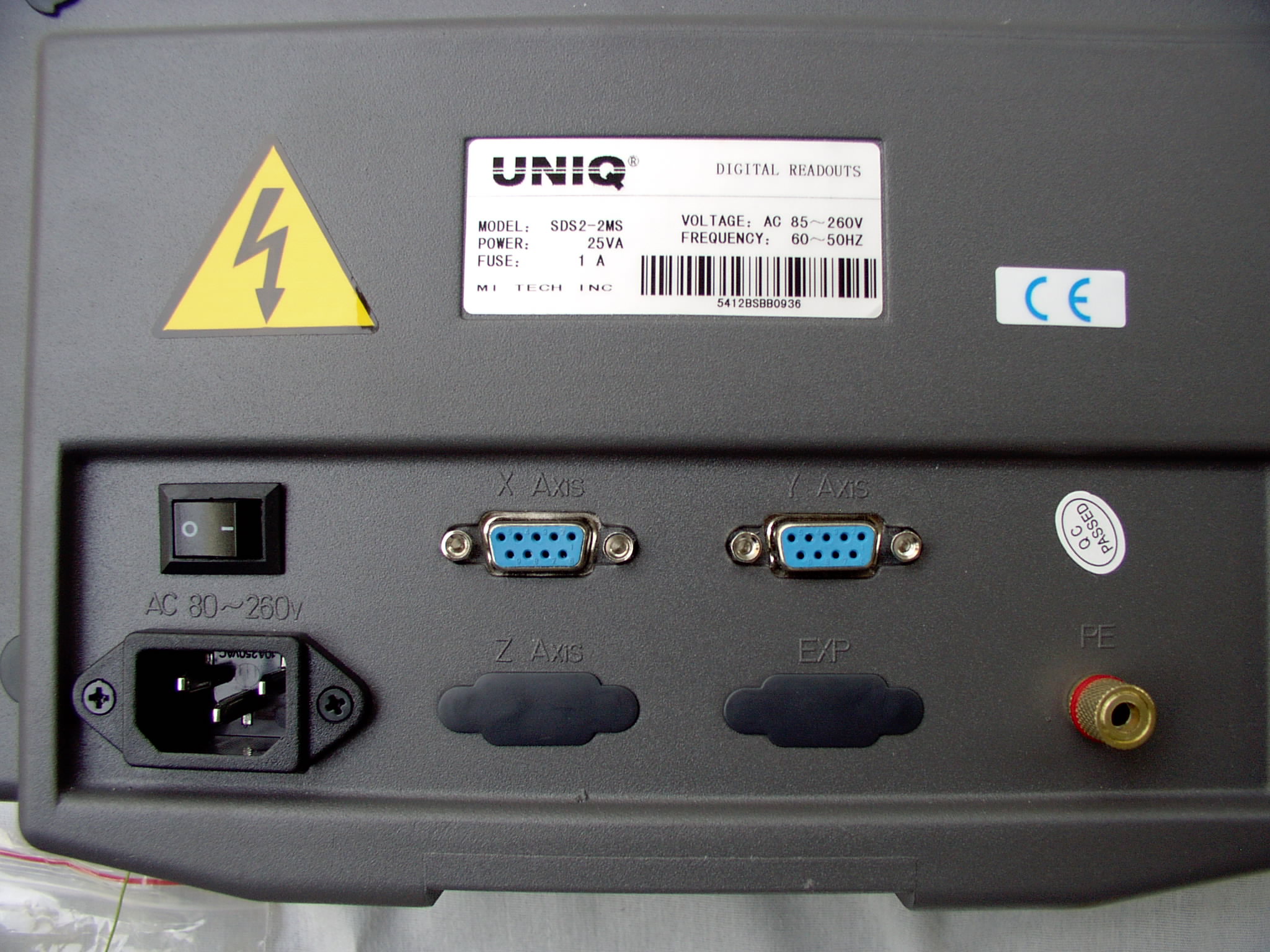

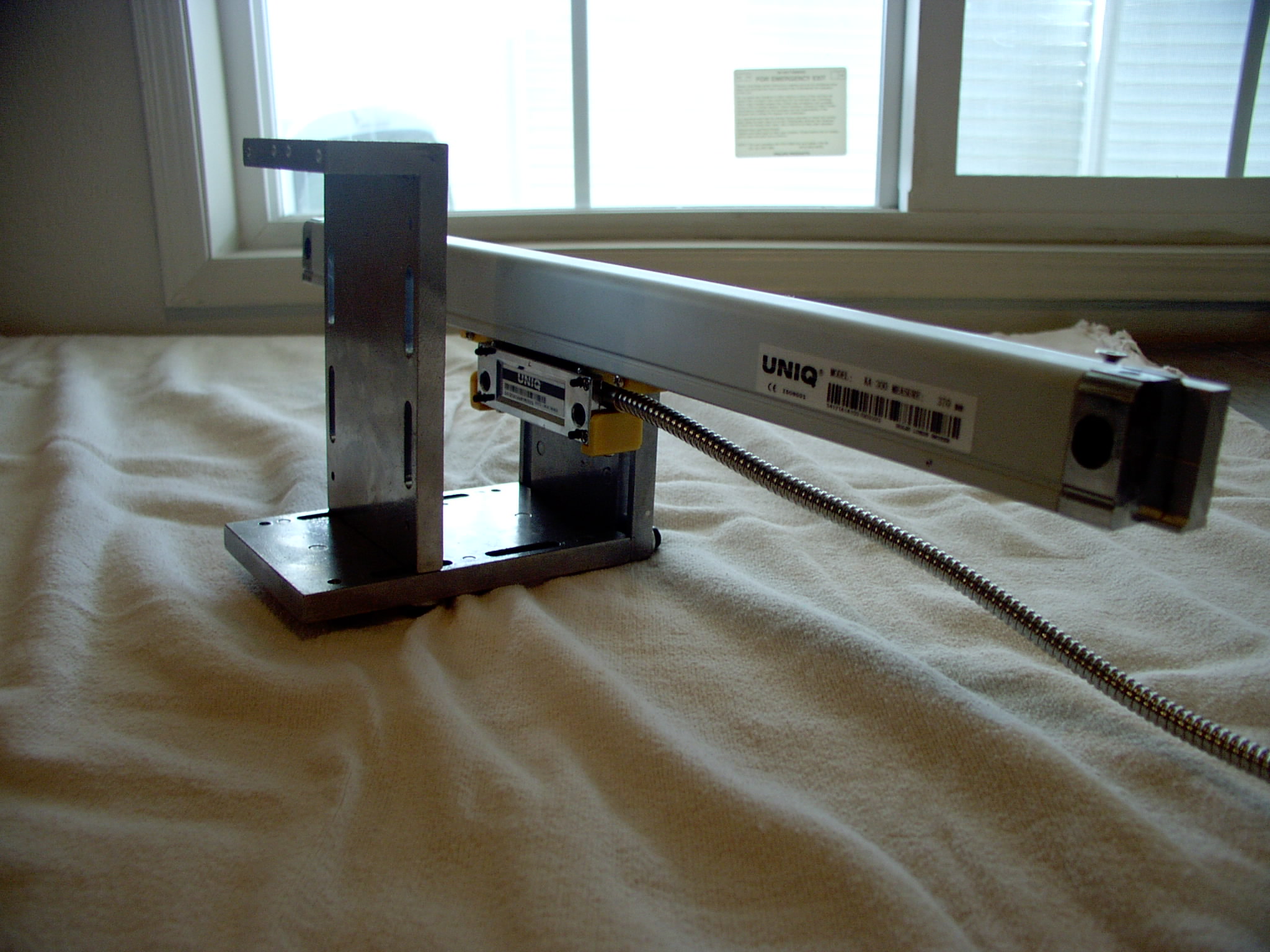

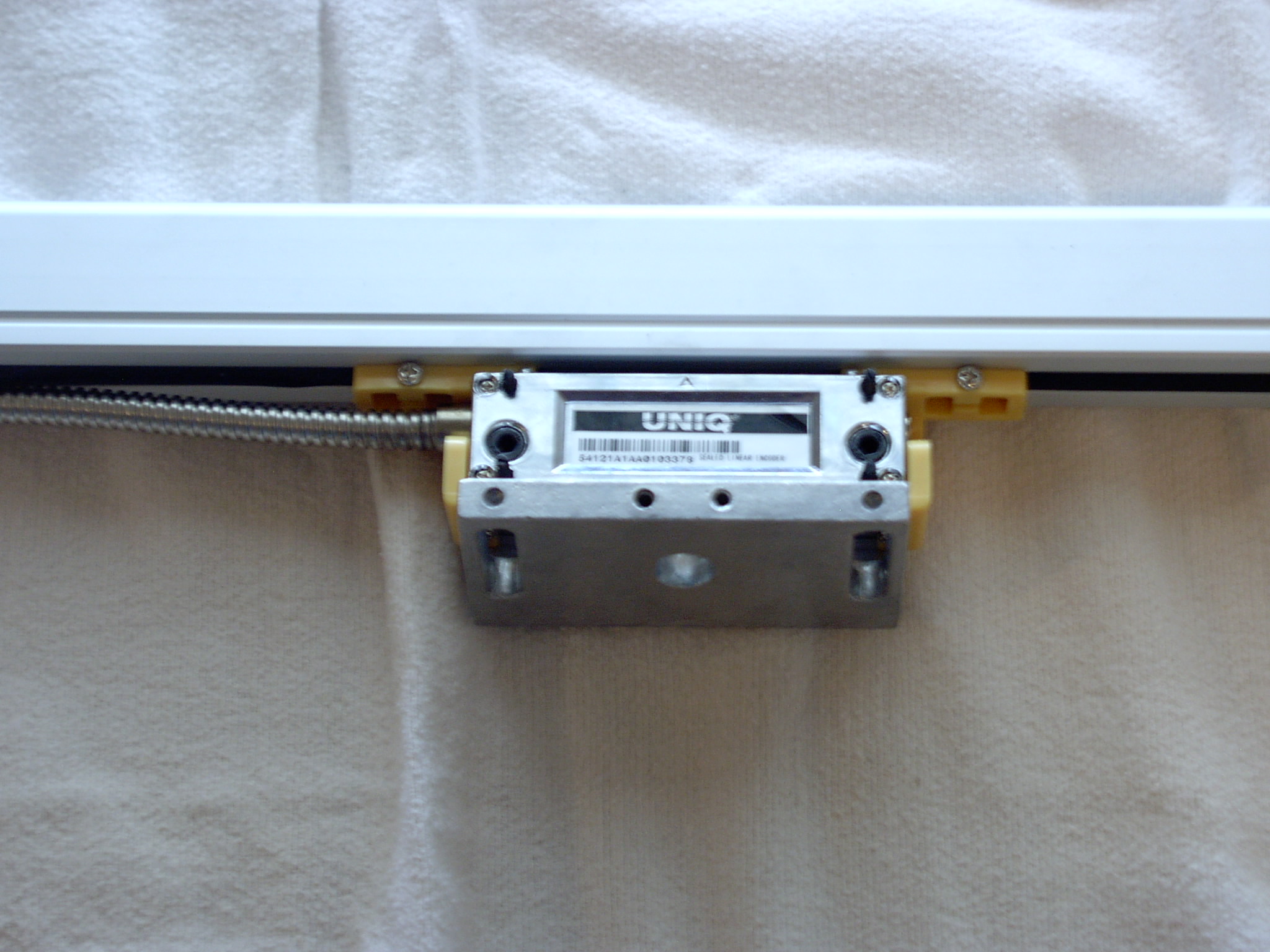

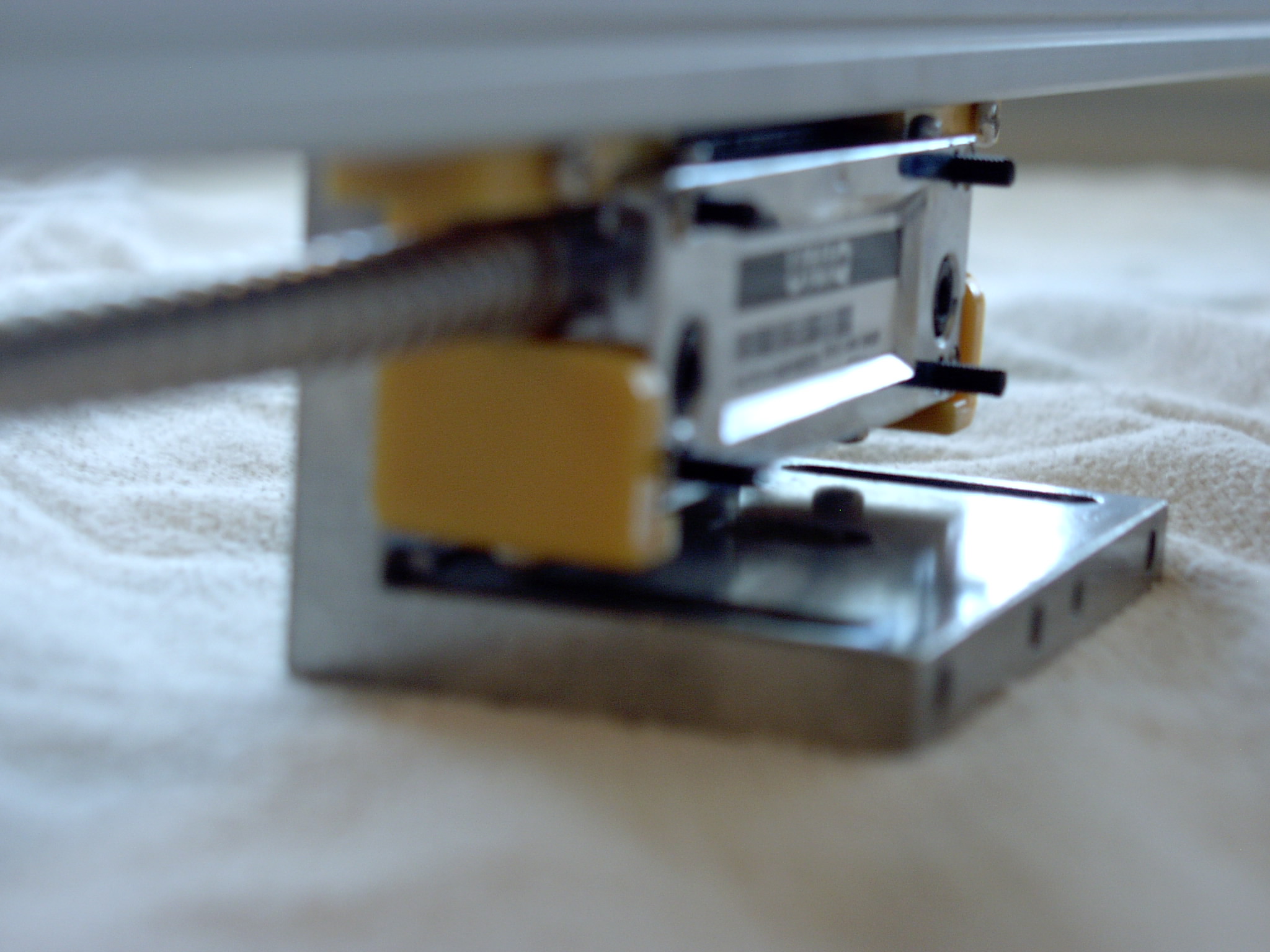

The following pictures are the scale and display with the brackets attached.
